To choose the right AC/DC adapter, you must match the output voltage exactly, ensure the output amperage is equal to or higher than the device requires, and verify that the connector size and polarity are compatible.
Losing the original power cord for your expensive electronics often feels like a minor disaster that renders your hardware useless. You might be tempted to grab any random cord from a “junk drawer,” but the wrong choice can lead to permanent hardware failure or even electrical fires. Our guide simplifies the technical jargon to help you identify the perfect power source for your specific needs. Whether you are replacing a standard ac dc 5v 2a usb power adapter or looking for a specialized industrial unit, understanding these specifications is the key to safety and performance.
What is an AC Power Adapter?
An AC power adapter is an external component that converts the high-voltage alternating current (AC) from your wall outlet into the low-voltage direct current (DC) that your electronic device requires to function. Even when you are looking for a simple ac dc 5v 2a usb power adapter , it is important to understand that these devices act as a protective bridge for your hardware.
Understanding AC to DC Conversion
The truth is:
Your wall outlet provides a turbulent flow of energy that would destroy sensitive electronics without a mediator.
- AC (Alternating Current) moves back and forth constantly.
- DC (Direct Current) flows in one single, steady direction.
- The adapter uses a transformer and rectifier to stabilize this flow.
Using an external switching power supply keeps the conversion process outside the device, allowing manufacturers to create thinner products. This design effectively reduces electrical noise and improves overall user safety.
Key Takeaway: AC adapters are essential converters that allow sensitive electronics to run safely on standard household power.
| Component | Function | Benefit | |
|---|---|---|---|
| Transformer | Steps down voltage | Safety | |
| Rectifier | Changes AC to DC | Compatibility | |
| Filter | Smooths the signal | Performance |
Effective power conversion ensures that your device receives a steady stream of energy without the risk of high-voltage spikes.

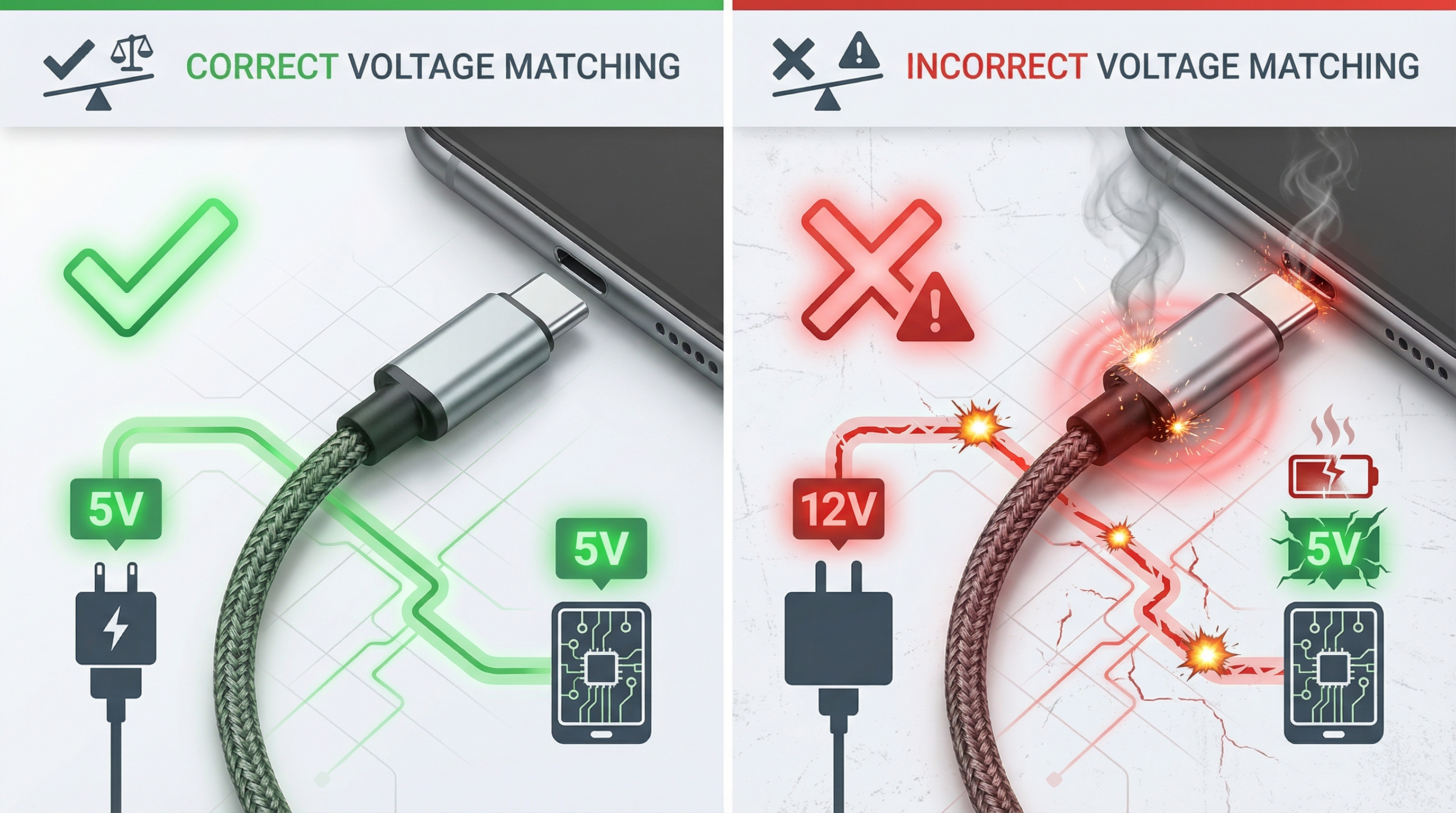

Why is Voltage Matching Essential?
Matching the voltage is essential because applying too much electrical pressure will “fry” your device’s components, while too little voltage will prevent it from turning on. Selecting a precision ac dc 5v 2a usb power adapter ensures your 5V-rated electronics receive exactly what they need to operate.
The Danger of Overvoltage
Look:
If you plug a 12V adapter into a 5V device, the excess energy will immediately destroy the integrated circuits.
- Permanent hardware failure is the most common result.
- There is a high risk of smoke or electrical fire.
- Using the wrong voltage will void your product warranty.
It is always better to double-check the label before plugging in any new power source. Even a small difference in voltage can cause internal components to run hot and fail prematurely.
Key Takeaway: Always match the output voltage of the adapter to the input voltage requirement of the device.
| Device Requirement | Adapter Output | Result | |
|---|---|---|---|
| 5V | 12V | Damage/Fire | |
| 5V | 3V | Won’t Work | |
| 5V | 5V | Perfect Match |
Strict adherence to voltage requirements is the single most important factor in preventing catastrophic electronic failure.
Can Amperage Ratings Be Different?
The amperage rating of your adapter can be higher than the device requires, but it must never be lower, as the device will only draw the current it needs. For example, using a 3A rated unit to power an ac dc 5v 2a usb power adapter application is perfectly safe and often runs cooler.
Drawing Power Safely
Believe it or not:
Amperage is like the capacity of a water pipe; as long as the pipe is big enough, the device will take only the “water” it needs.
- Higher amperage adapters are often more durable over time.
- They provide a necessary “buffer” for sudden power spikes.
- There is no risk of “forcing” too much current into the device.
Using a high-capacity desktop power adapter for a low-draw device is a common practice in professional IT setups. This ensures the power supply never hits its maximum limit, extending the life of the internal capacitors.
Key Takeaway: It is safe to go higher on Amps (A), but never go lower than the device’s rating.
| Device Requirement | Adapter Rating | Safety Status | |
|---|---|---|---|
| 2.0A | 1.0A | Dangerous/Fail | |
| 2.0A | 2.0A | Good | |
| 2.0A | 5.0A | Excellent |
Choosing an adapter with a higher amp rating provides a safety margin that prevents the power brick from overheating during heavy use.

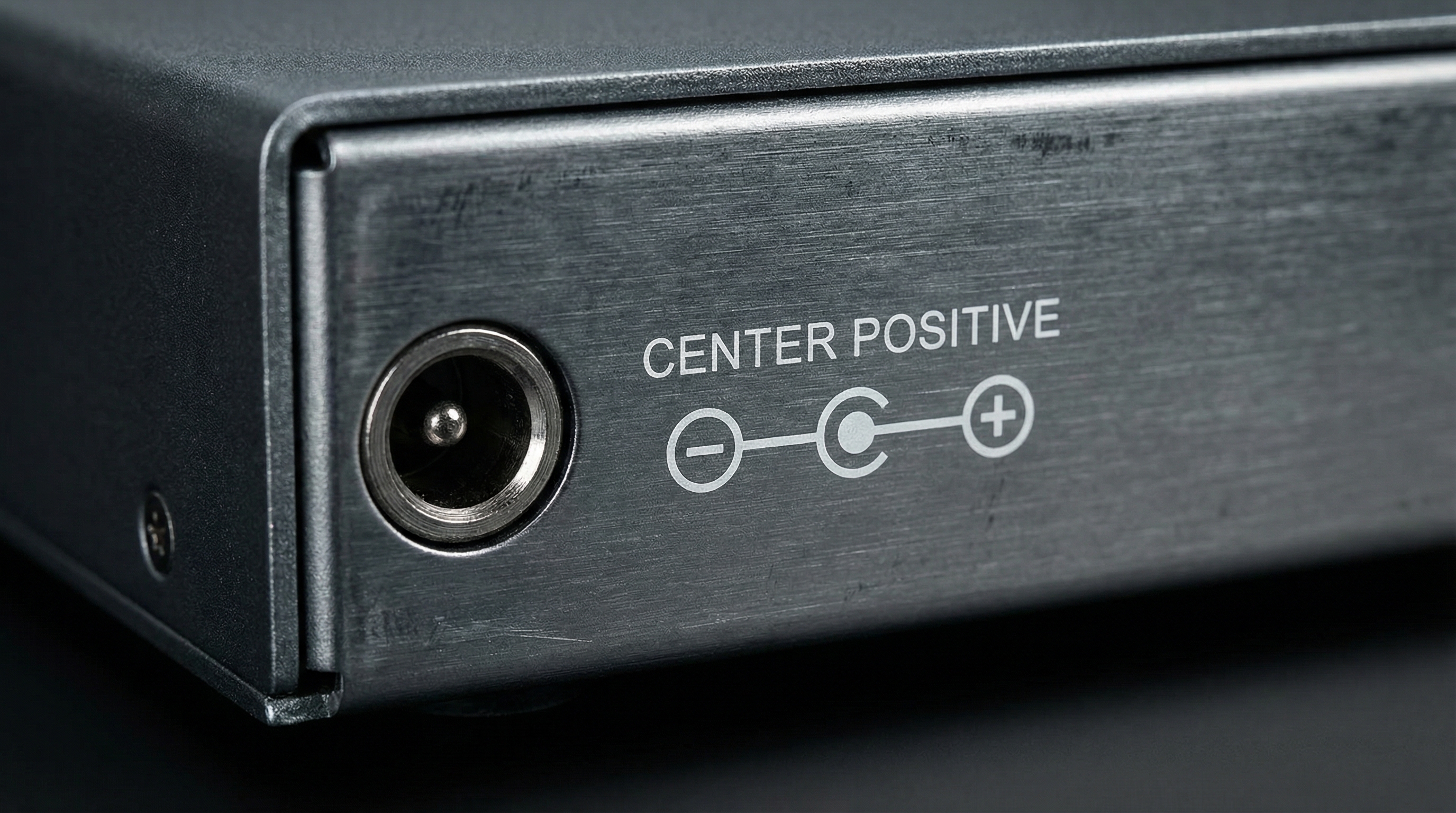

Does Connector Polarity Really Matter?
Connector polarity matters immensely because reversing the positive and negative flow of electricity can instantly destroy a device’s charging circuit. Before connecting an ac dc 5v 2a usb power adapter, you must check the polarity symbol on the label to ensure it matches the input port.
Center Positive vs Negative
The truth is:
Most modern electronics use “Center Positive” connectors, but many older or musical devices use “Center Negative.”
- Center Positive: The inner pin is (+), the outer barrel is (-).
- Center Negative: The inner pin is (-), the outer barrel is (+).
- Mixing these up is one of the most common causes of device death.
You must look for the diagram of three circles connected by lines on the adapter housing. A line pointing to the center dot from the (+) sign confirms it is a Center Positive unit.
Key Takeaway: Verify that the polarity symbol on the adapter matches the symbol on the device’s power port.
| Symbol Diagram | Type | Common Use | |
|---|---|---|---|
| (+)—(o—(-) | Center Positive | Laptops, Routers | |
| (-)—(o—(+) | Center Negative | Guitar Pedals |
Polarity mismatches are often irreversible, making this a critical check before applying power to any sensitive hardware.

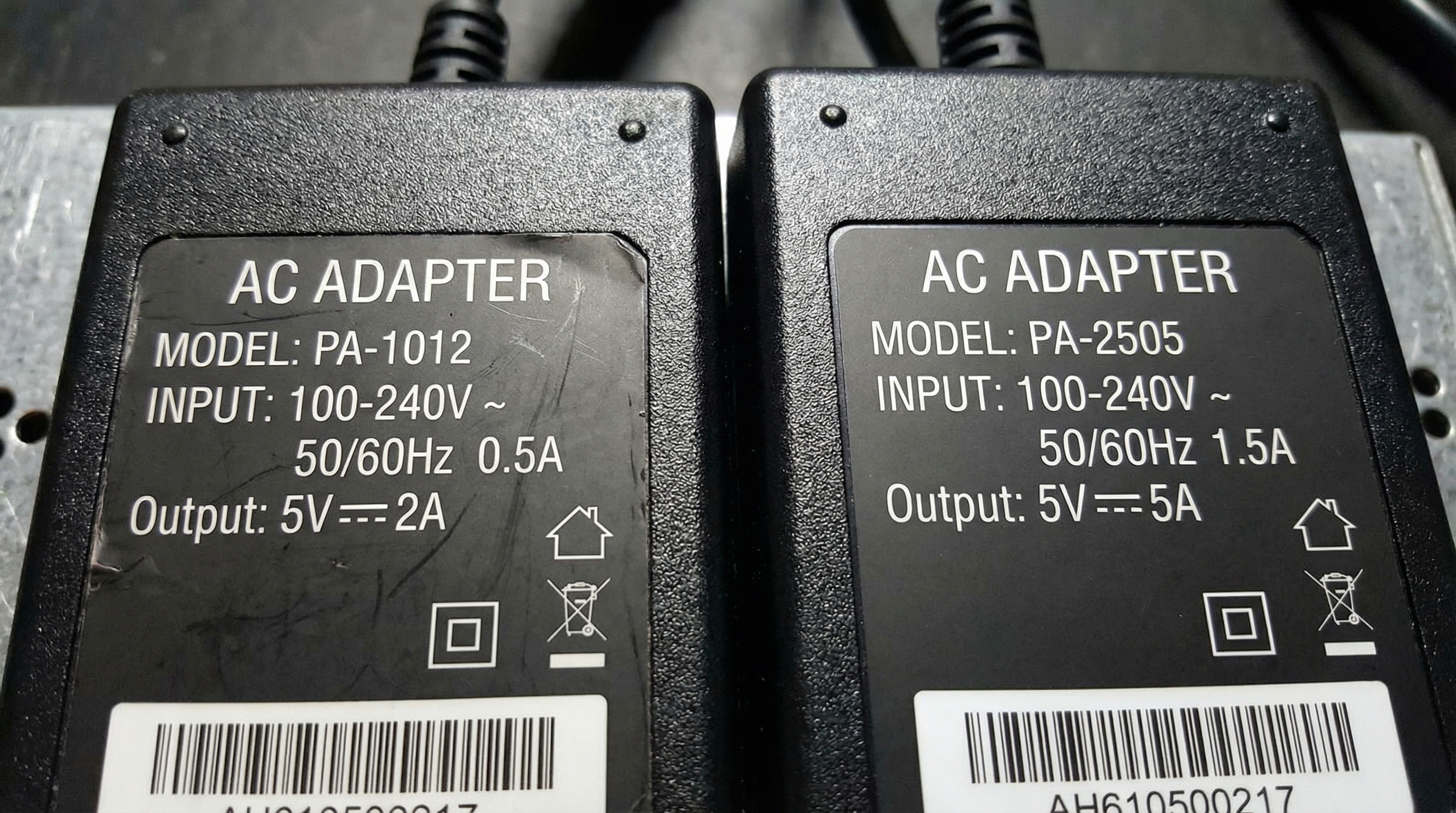

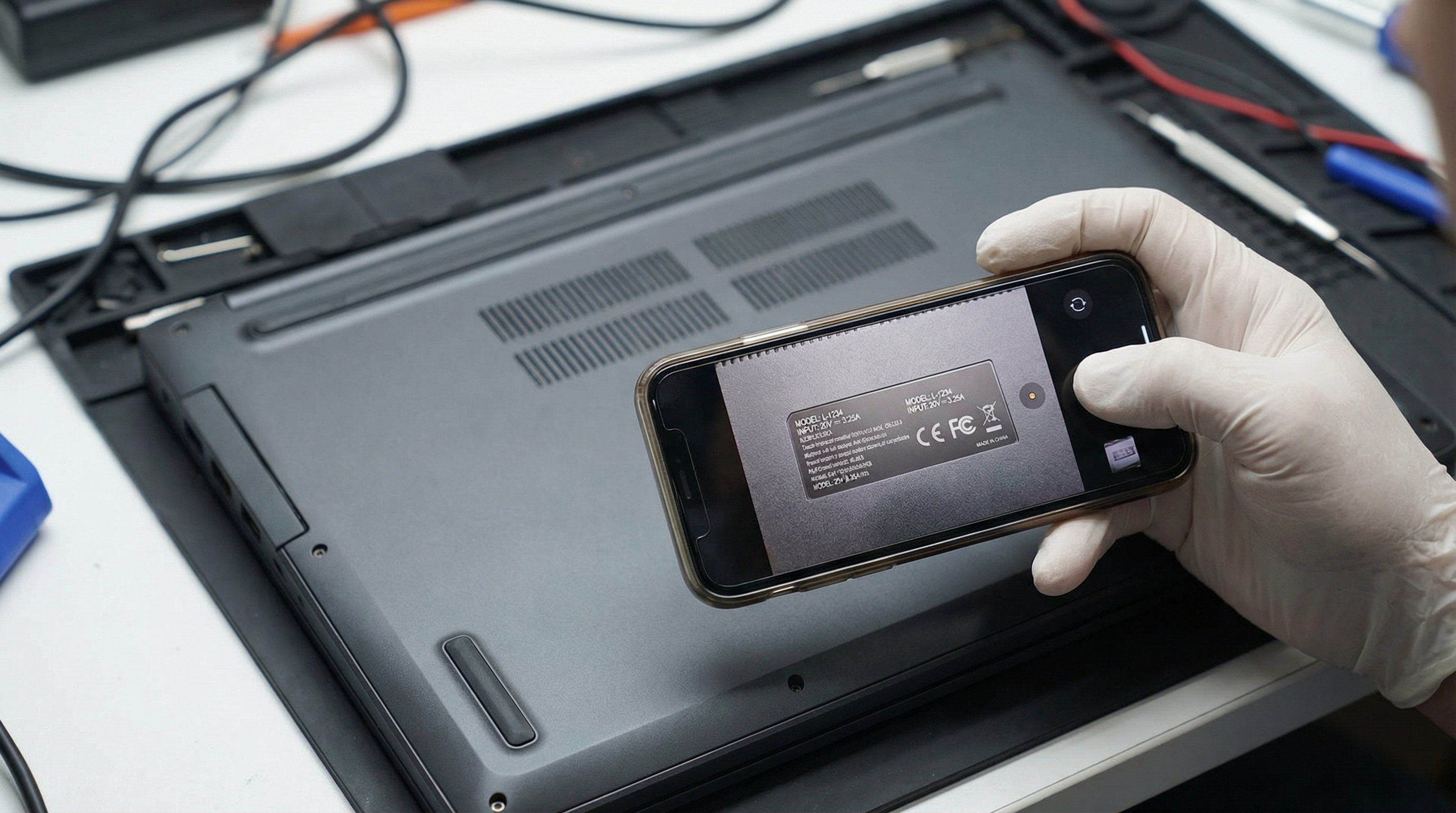

How Do You Find Your Device Specs?
You can find your device specifications by looking for a “DC Input” label near the power port, checking the manufacturer’s sticker on the bottom, or referring to the user manual. Whether you need an ac dc 5v 2a usb power adapter or a specialized medical adapter , the information is usually right in front of you.
Decoding the Product Label
Think about this:
The label on your device contains a “map” to the perfect power supply if you know how to read the codes.
- Look for “Input” or “DC In” near the charging port.
- Note the Voltage (V) and Amperage (A or mA) clearly.
- Identify the polarity symbol to ensure a safe electrical connection.
If the sticker has worn off, the manual or the manufacturer’s website is your next best resource. Searching for your specific model number will usually reveal the required technical power specifications.
Key Takeaway: Take a photo of the device’s input label to ensure you have the exact specs when shopping for a replacement.
| Data Point | Example | Importance | |
|---|---|---|---|
| Input Voltage | 5V DC | High (Must Match) | |
| Current Draw | 2000mA (2A) | High (Equal or More) | |
| Connector Type | USB-C / Barrel | High (Must Fit) |
Taking a few seconds to verify the input requirements prevents the frustration of buying an incompatible or dangerous power supply.

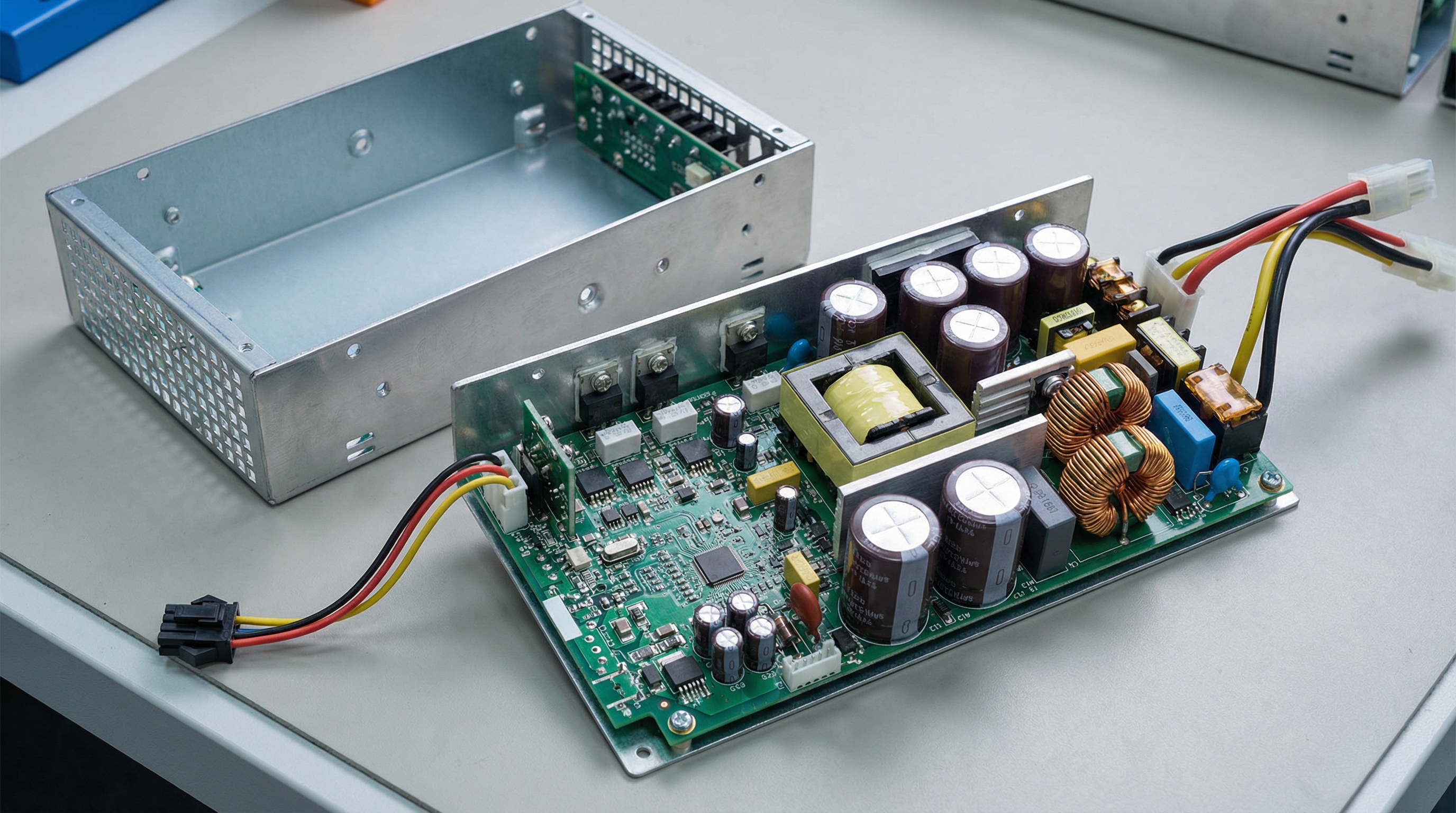

What is a Switching Power Supply?
A switching power supply is a modern adapter that uses a high-frequency “switch” to convert power efficiently, making it smaller and lighter than old-fashioned heavy transformers. Most modern ac dc 5v 2a usb power adapter units use this technology to provide stable power in a compact form factor.
Benefits of High Efficiency
You’ll love this:
Switching adapters waste very little energy as heat compared to older linear power supplies that get very hot.
- Lower electricity bills due to high conversion efficiency.
- Cooler operating temperatures even under heavy charging loads.
- Support for “Universal Input” allowing use in different countries.
Because they don’t require heavy iron cores, these adapters are highly portable and ideal for travel. You can find these integrated into modern usb charger designs that fit easily into any laptop bag.
Key Takeaway: Switching power supplies are the industry standard for efficiency and portability in modern electronics.
| Feature | Switching Supply | Linear Supply | |
|---|---|---|---|
| Weight | Light | Heavy | |
| Heat | Low | High | |
| Efficiency | 85-95% | 40-60% |
The move to switching technology has allowed for smaller devices while simultaneously reducing the carbon footprint of our home electronics.

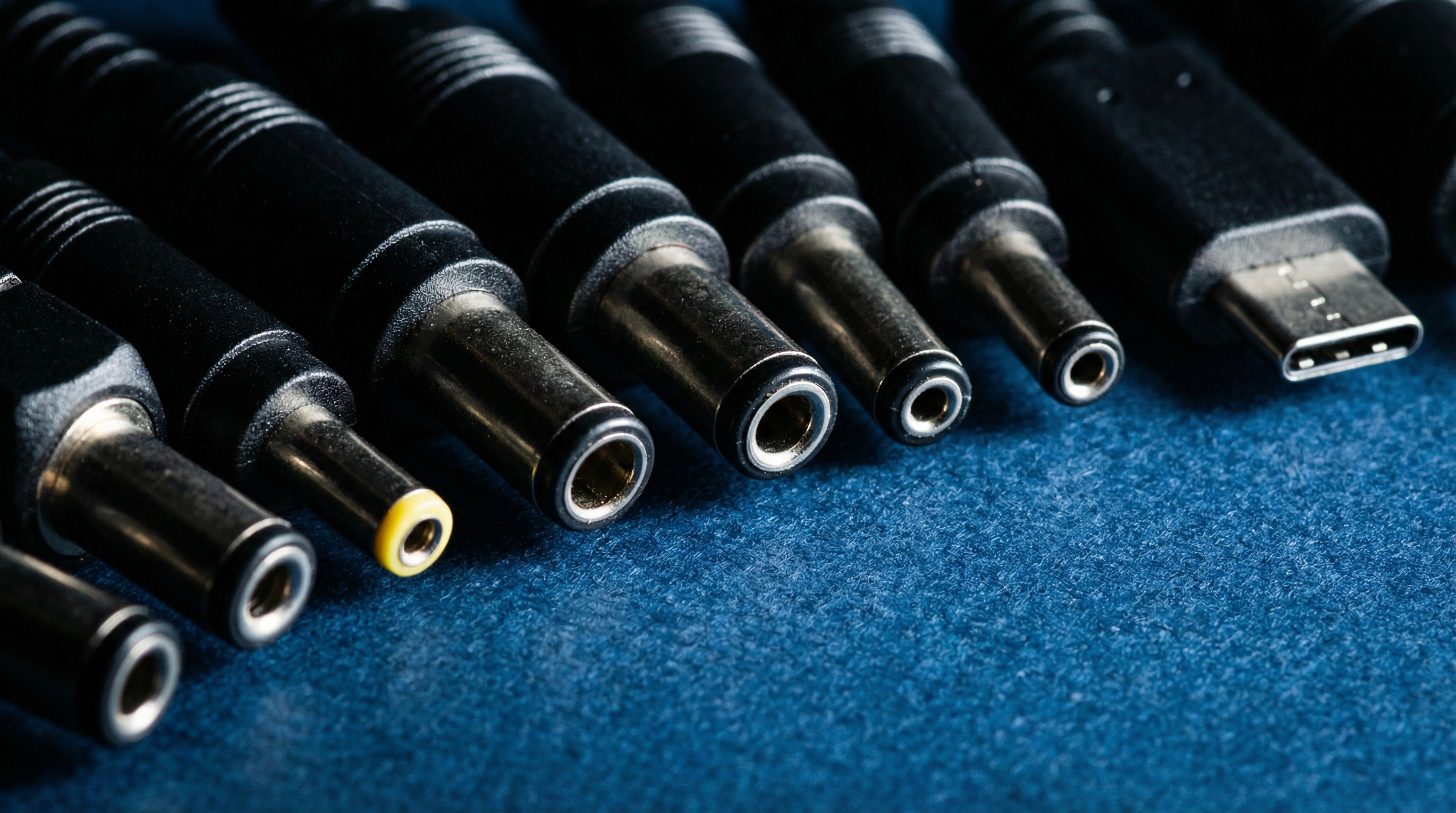

Are All Plug Sizes Standardized?
Plug sizes are not standardized, and even connectors that look identical may have different diameters that prevent a secure connection. Even a standard-looking ac dc 5v 2a usb power adapter might use a 5.5mm x 2.1mm barrel or a 5.5mm x 2.5mm barrel, which are not cross-compatible.
Measuring the Barrel Dimensions
Look at it this way:
You cannot guess plug size just by looking; a difference of 0.4mm is invisible to the eye but ruins the fit.
- Use a digital caliper for exact measurements of the tip.
- The “OD” (Outer Diameter) is the width of the metal barrel.
- Common sizes include 5.5mm, 3.5mm, and the smaller 2.5mm.
The “ID” (Inner Diameter) determines if the plug will slide onto the device’s internal post. A loose plug can cause sparking or intermittent power, which may eventually damage the device’s charging port.
Key Takeaway: A loose plug can cause sparking; ensure the barrel dimensions are an exact match for your device.
| Common Size | Application | |
|---|---|---|
| 5.5 x 2.1mm | Most CCTV/Routers | |
| 3.5 x 1.35mm | Small Tablets | |
| USB-C | Modern units |
Using a connector that is “close enough” is a recipe for a damaged charging port or a fire hazard due to poor electrical contact.
Why Choose an External Adapter?
Choosing an external adapter allows for safer device operation, easier replacement if the power unit fails, and a significantly smaller footprint for the device itself. When you use a high-quality ac dc 5v 2a usb power adapter, you are keeping the “hot” components of the power chain outside your sensitive hardware.
Reduced Heat and Interference
But that’s not all:
By moving the power conversion outside, the sensitive microchips inside your device stay much cooler during operation.
- Longer lifespan for internal capacitors and delicate processors.
- No need for loud internal cooling fans in small devices.
- More stable performance during heavy data processing or gaming.
If your power supply dies, you only have to replace the “brick,” not the entire expensive device. This significantly lowers long-term maintenance costs and allows you to swap plugs easily when traveling between different countries.
Key Takeaway: External adapters act as a “sacrificial” component that is easy and cheap to replace if a power surge occurs.
| Benefit | Impact | |
|---|---|---|
| Scalability | Use different region plugs on one device | |
| Cost | 15replacementvs.500 device repair | |
| Aesthetics | Allows for ultra-thin hardware designs |
External power solutions offer a modular approach to electronics that benefits both the manufacturer’s design and the consumer’s wallet.
How Do You Spot a Quality Adapter?
You can spot a quality adapter by looking for official safety certification marks, a heavy-duty cord with strain relief, and a manufacturer label. A generic, unbranded ac dc 5v 2a usb power adapter often lacks the internal protection needed to prevent house fires or electrical noise.
Safety Certification Symbols
Here is the thing:
Never buy an adapter that hasn’t been tested by independent laboratories like UL, ETL, or CE.
- UL/ETL: The gold standard for North American safety testing.
- CE: Mandatory for all products sold in the European Economic Area.
- FCC: Ensures the device doesn’t ruin your Wi-Fi or radio signals.
High-quality manufacturers invest in the housing and the cable, not just the internal chips. Look for thicker, flexible copper wiring and a solid plastic housing that doesn’t creak when you apply light pressure.
Key Takeaway: Safety certifications are the most important indicator of a power supply that won’t damage your home.
| Logo | Name | Region | |
|---|---|---|---|
| UL | Underwriters Laboratories | USA/Canada | |
| CE | Conformité Européenne | Europe | |
| GS | Geprüfte Sicherheit | Germany/Global |
A certified adapter is an investment in your safety, providing peace of mind that the unit has passed rigorous thermal and electrical stress tests.
Can You Use Universal Adapters?
You can use universal adapters if you are extremely careful to set the correct voltage and select the matching tip for your device. If you are replacing an ac dc 5v 2a usb power adapter, a dedicated unit is usually safer than a “multi-tip” set that might be bumped to the wrong setting.
Versatility for Global Travel
The best part:
One universal adapter can replace several bulky bricks in your suitcase, saving significant space and weight.
- Works with different wall outlet shapes found worldwide.
- Adjustable voltage settings for various small gadgets.
- Includes a library of different connector tips for flexibility.
However, the biggest danger of universal units is “setting and forgetting” the wrong voltage for a different device. Accidental voltage bumps can fry your electronics instantly if you aren’t paying close attention during the setup process.
Key Takeaway: Use universal adapters for temporary travel needs, but stick to a dedicated adapter for permanent home setups.
| Adapter Type | Pros | Cons | |
|---|---|---|---|
| Dedicated | Safe, Plug-and-Play | One Device Only | |
| Universal | Versatile, Travel-Friendly | Risk of User Error |
Universal kits are excellent tools for tech-savvy users, but they require a level of diligence that dedicated power supplies do not.
Selecting the correct power supply is the simplest way to extend the life of your electronics and ensure your home stays safe from electrical hazards. Our vision is to provide high-efficiency, certified power solutions that empower global technology. If you need help choosing the perfect unit for your specific hardware, contact us today for expert guidance.
Frequently Asked Questions
Can I use a 12V adapter on a 5V device?No. Using a higher voltage than required will cause immediate and permanent damage to your device’s internal circuits and may cause a fire.
What’s the best way to measure my plug size?The most accurate method is using a digital caliper to measure the Outer Diameter (OD) and Inner Diameter (ID) of the barrel in millimeters.
Can I use a charger with more amps than my device needs?Yes. Amperage is “pulled” by the device, so an adapter with a higher amp rating will safely provide only what is needed and run cooler.
What’s the best adapter for international travel?The best choice is an interchangeable adapter that features a wide input range (100V-240V) and swappable wall plugs for different countries.
Can I use a phone charger for my laptop if it’s USB-C?Only if the charger supports the specific Power Delivery (PD) voltage and wattage required by your laptop; otherwise, it will not charge.
